When many people are purchasing UPS from Pakistan, they are not even thinking about the output waveform produced by the UPS, and this one piece of overlooked information can cause long term damage to expensive appliances, medical equipment or sensitive electronics. The difference between modified sine wave and pure sine wave UPS systems is not something you can choose to ignore when you’re picking the right UPS.
The stakes are higher now with load shedding being the reality of life across major cities such as Lahore, Karachi and Islamabad. Not only is a wrong choice going to affect performance, but it can also shorten device life or even cancel the warranty outright.
Capasee Electro Medical Engineering explains these two technologies in layman’s terms, including how they operate, where to apply them, and which is the right technology for your clinic, office or home.
Modified Sine Wave and Pure Sine Wave UPS: What’s the Real Difference?
The main distinction is how good the electrical performance of each UPS is for your devices. A modified sine wave UPS will create an approximated sinusoidal output, whereas a pure sine wave UPS will replicate the smooth and consistent output power directly from the national grid. This difference is imperceptible in most consumer electronics but noticeable, and even harmful, in sensitive electronics using modified sine wave and pure sine wave UPS solutions.
Inconsistency of voltage and power cuts in Pakistan’s power grid are already a reality. The wrong UPS waveform on top of that issue is a serious risk to your appliances, especially those containing a motor, compressor and microprocessor.
What is a Modified Sine Wave UPS and How Does It Work?
A modified sine wave UPS is a modified version of the sine wave, which is not a smooth curve. It very quickly alternates between positive and negative voltage and thus produces a staircase like oscillation on an oscilloscope instead of a nice wave.
This design ensures a low production cost, and that is the reason that modified sine wave units are in the majority in the budget end of the Pakistani market. They are perfectly safe for lighting, fans and other resistors, but can be problematic for more complex devices when compared with modified sine wave and pure sine wave UPS performance standards.
You May Also Read This Blog: Medical Grade UPS
What is a Pure Sine Wave UPS and Why is It Cleaner Power?
A pure sine wave UPS will generate an output similar to the smooth, continuous output of utility power. The amplitude of the waveform oscillates in a sinusoidal manner, a form that is ideal for most modern electronic devices.
This clean power is used by medical equipment, CPAP machines, the laser printer, the variable speed appliances and desktop computers with active power factor correction (APFC). For this reason, all UPS solutions recommended at Capasee Electro Medical Engineering are based on the pure sine wave output in modified sine wave and pure sine wave UPS systems.

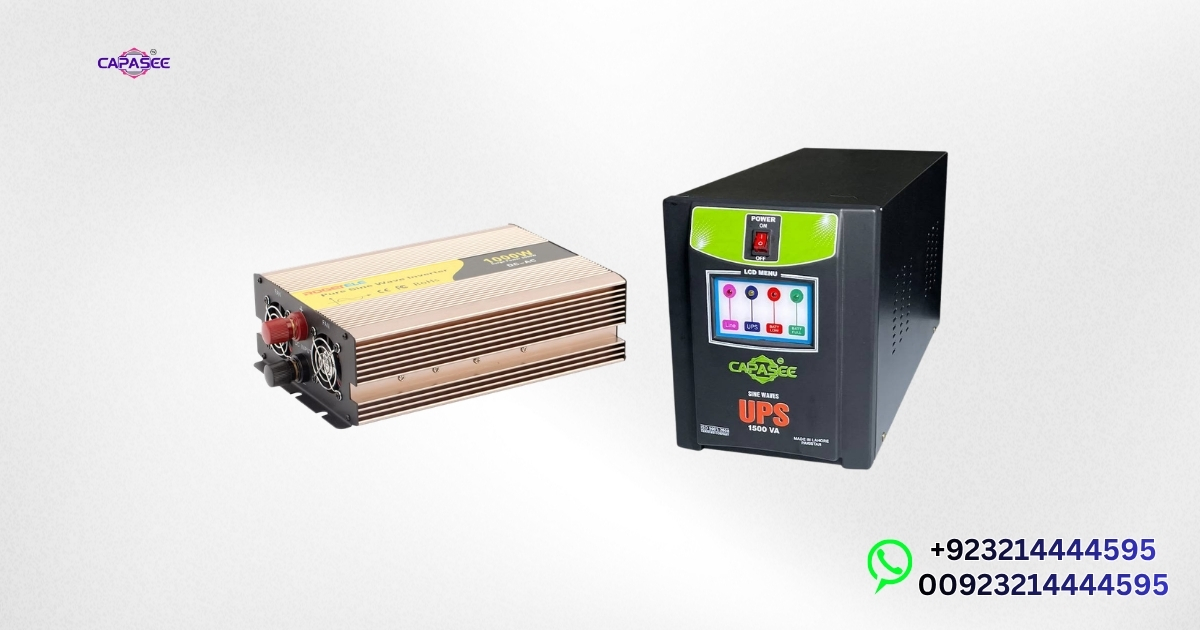

Modified Sine Wave and Pure Sine Wave UPS Comparison for Pakistan
When buyers in Pakistan are thinking of buying both types, they are typically looking at 3 things; the class of devices to be protected, the budget and the location for the UPS. There is a place for both types of waveforms, but they are not mutually interchangeable.
The real life differences are important to know before buying and can save money in the long run. The damage done to a PKR 150,000 inverter AC unit or a medical device by the cheaper modified sine wave unit will cost a lot more than the price of the difference between the two types of UPS.
Modified Sine Wave vs Pure Sine Wave UPS: Side by Side Comparison Table
Use this table when you’re considering purchasing a UPS in Pakistan to identify which waveform type is best suited for your devices. The price difference between these two options is nothing in comparison to one wrong selection.
Take advantage of this table to easily find the best waveform for your needs:
| Feature | Modified Sine Wave UPS | Pure Sine Wave UPS |
| Output Quality | Basic, stepped waveform | Smooth, utility like waveform |
| Device Compatibility | Works with many simple devices | Better for sensitive electronics |
| Heat and Noise | Can cause more heat or audible hum | Usually quieter and cooler |
| Price | Lower upfront cost | Higher upfront cost |
| Best Use Case | Simple loads, basic backup | Computers, medical devices, mixed loads |
| Motor and Compressor Safety | Risk of overheating over time | Safe and efficient operation |
| Warranty Compliance | May void manufacturer warranty | Preserves warranty conditions |
Which UPS Waveform is Better for Home, Office, and Medical Equipment in Pakistan?
A modified sine wave UPS can typically be used in a simple household application with ceiling fans, LED lights, and a router during loadshedding, as these devices are not particularly power intensive. Once you add a desktop computer, a laser printer or any medical device to the load, however, the calculus changes completely with modified sine wave and pure sine wave UPS considerations.
In offices that use server equipment, accounting software or point of sale systems in Pakistan, it is always a good option to go with a pure sine wave. There is no question for the clinics or the diagnostic labs. Capasee always advises the use of pure sine wave UPS systems in any healthcare environment where accuracy of equipment and patient safety are of concern.
Which UPS Should You Buy in Pakistan?
The selection of the right UPS will depend solely on the type of equipment you are protecting and its importance to your daily operations. It’s not a one size fits all thing, but there is always a right answer for your load.
Both types are available in Pakistan’s market in a wide range of prices. The important principle is not that it should be the least expensive unit out there, but that it should be the right unit for your particular devices, and then the best unit in that class for modified sine wave and pure sine wave UPS applications.
Best Choice for Home Appliances, Computers, and Medical Devices
A modified sine wave and pure sine wave UPS works perfectly for household appliances such as fans, simple TVs and LED lights. A pure sine wave is the better and safer option for computers, particularly those with up to date APFC power supplies. A pure sine wave is essential for medical devices such as oxygen concentrators, infusion pumps, CPAP machines and diagnostic monitors.
These devices are programmed for clean power, and anything else may lead to inaccurate readings, stress on the motors or failure. The differences between modified sine wave and pure sine wave UPS are explained in this publication. This publication explains the difference between a modified sine wave UPS and a pure sine wave UPS.
When Modified Sine Wave UPS is Enough and When Pure Sine Wave is Worth It
Where your load is purely resistive and not critical, a modified sine wave is sufficient. For a small retail business that depends on the UPS to power a light and a simple fan during an outage just lasting for two hours.
The instant your load consists of any device incorporating a microprocessor, motor driven compressor, or active power correction, then a pure sine wave becomes a worthwhile investment. The additional initial expense is just the expense of protecting much more valuable equipment in those instances.
Check More & Purchase: Our Products

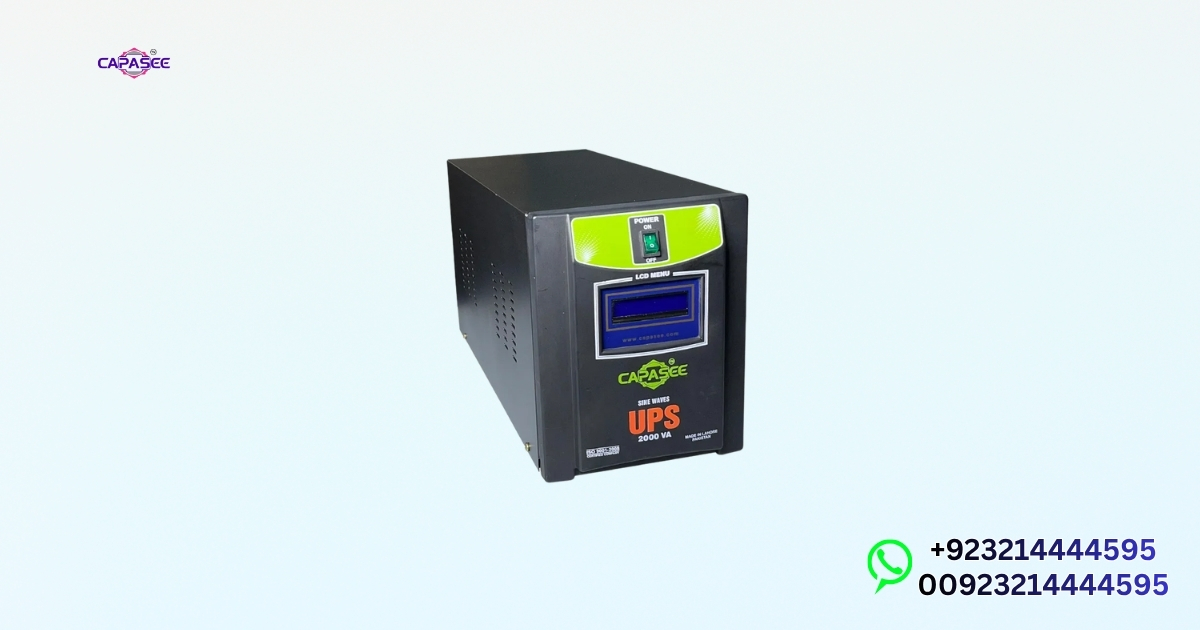

How to Choose the Right UPS for Your Needs
Waveform is not the only factor when selecting a UPS. After determining the type of waveform that will satisfy your load, you must also consider the unit’s specific level of protection, how long you want to expect it to last during a power outage, and your budget. The calculations are incorrect; they result in an overloaded UPS or a UPS turning off after 10 minutes.
Capasee Electro Medical Engineering makes it easy for its clients all over Pakistan to have an idea of their load demand prior to making any suggestions for a unit. An adequate load calculation ensures a proper size that will avoid undersizing of equipment and safeguard both the UPS and the equipment.
UPS Buying Factors: Load Type, Backup Time, Battery, and Budget
Write down all the devices to be used and record their wattage. Sum up those numbers and then add a 20% safety margin. That number is the lowest number of VA or watts that your UPS can support.
Then, you need to think about the battery life. The larger the battery, the longer the battery backup, but the larger the battery, the more expensive and bulky. If your home experiences 2 to 3 hours of electricity outages, then you should start with an external battery UPS of 100Ah or more.
Why Pure Sine Wave UPS is Often Recommended for Sensitive and Professional Use
Sensitive electronics are designed and tested to a clean sine wave standard. Stepped or warped power causes them to operate harder, hotter and wear out quicker. This can cause failure over the course of many months or years when using modified sine wave and pure sine wave UPS systems improperly.
For health care, IT and engineering professionals, it isn’t only equipment damage that is a risk. It’s data loss, service interruptions, or compromised patient care. Capasee pure sine wave UPS range is chosen for applications where reliability is a must.
Frequently Asked Questions
Is Modified Sine Wave UPS Safe for Computers?
A modified sine wave UPS is suitable for running basic computers, but it is not ideal. Modern desktops equipped with APFC power supplies can become inefficient, create excess heat or become life limiting. To protect the computer system without facing any chances of damage in the long term, Capasee suggests installing pure sine wave UPS systems in Pakistan to ensure its protection.
Can a Pure Sine Wave UPS Run All Appliances?
Yes, a pure sine wave UPS can safely provide power for any appliance, such as a fan, lighting, delicate electronics, motor driven equipment and more. It gives clean, stable output that can be used by almost any device. The most flexible and safest option for houses, offices and clinics.
Which is better for medical equipment in Pakistan, modified sine wave or pure sine wave UPS?
In the medical field, only a pure sine wave UPS will keep your equipment safe. Medical equipment such as oxygen concentrators, infusion pumps, and diagnostic monitors need to be powered by clean, stable electricity to properly operate. Calibration error or motor stress may result from a modified sine wave. Capasee Electro Medical Engineering provides clinical and healthcare specific pure sine wave UPS units in Pakistan.
Why is Pure Sine Wave UPS More Expensive Than Modified Sine Wave UPS?
Pure sine wave UPS units are more expensive, due to their use of more complex inverter technology that delivers smooth, grid compatible power. Those parts that provide that precision are more complicated and more expensive to produce. The higher cost is due to superior protection, longer device life and performance compatibility for sensitive electronics, making it a wise long term buy.
Does Modified Sine Wave UPS Damage Devices?
This is subject to the device. Standard lights and basic fans do not seem to be affected. But motors, compressors or microprocessor powered devices can overheat, wear out, or malfunction over time. In certain instances, if sensitive equipment is run on a modified sine wave UPS, the manufacturer’s warranty is null and void.
How Do I Know Whether I Need a Pure Sine Wave UPS?
Review the devices that you will be plugging in. A pure sine wave UPS is required for any load that contains a desktop computer, a laser printer, medical equipment, inverter AC or any other device that has an active power supply. If you’re not sure, the Capasee Electro Medical Engineering team can measure your load and suggest the best solution for you.
Final Thoughts
One of the most crucial and most ignored aspects of purchasing a UPS in Pakistan is its type of wave. The distinction between modified sine wave and pure sine wave UPS systems is more than technical; it has a direct impact on the life of your equipment, its reliability, and whether you’re investing in expensive equipment that will be protected.
The cost of the UPS will only be a fraction superior in the long run if the correct one is picked in the beginning. When you’re establishing a home, office, or healthcare centre, Capasee Electro Medical Engineering is here to support you in making that choice with confidence.
Call us today and receive a free load assessment and the right UPS for you. A power you can trust for your equipment.
