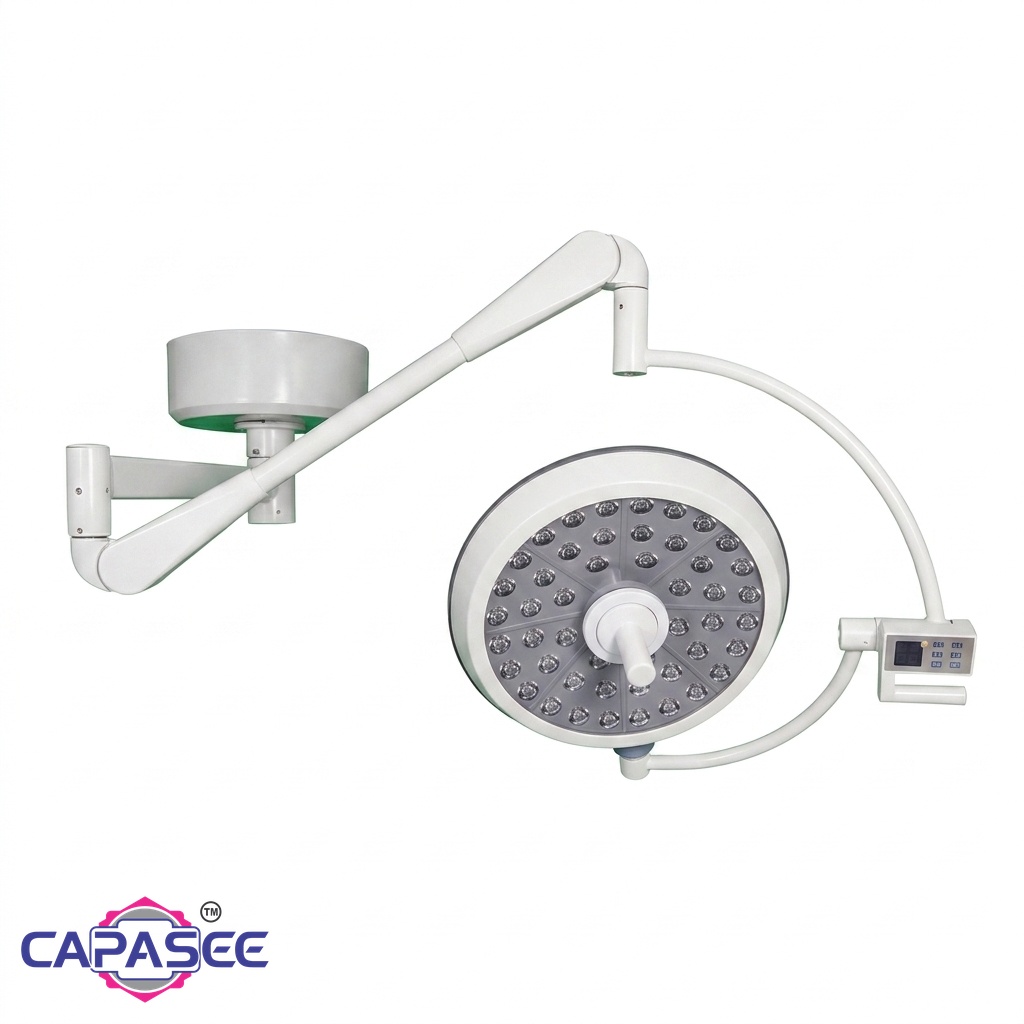

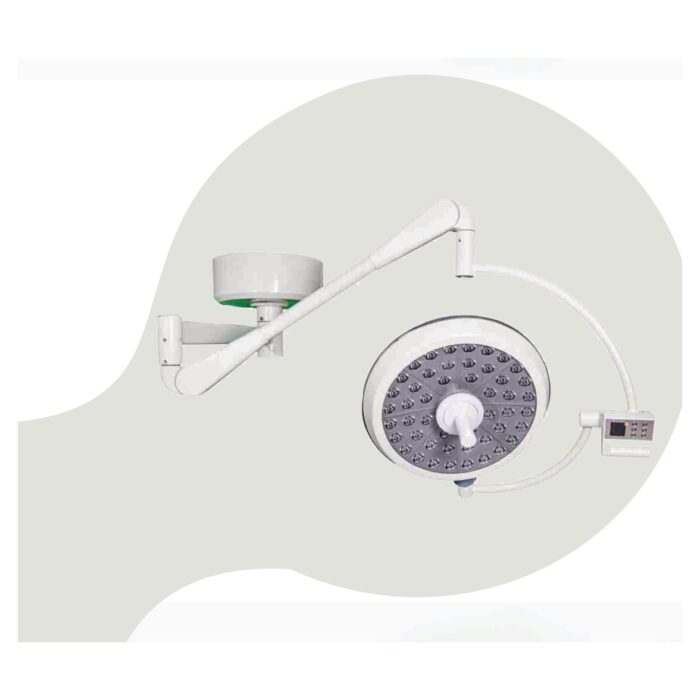

Capasee CLD SX-II 700 Single Dome Ceiling LED Operation Theater Light
The Capasee CLD SX-II 700 is an ultrathin, high-end 700mm single dome ceiling-mounted LED surgical light featuring premium German Osram LED chips. Designed with dedicated specialized surgical modes (One-Key Endo Mode, Sunlight Mode, and Full Lux Mode), it delivers exceptional illumination clarity with laminar flow compatibility.
Key Features
- ✅ Premium German Osram LED Chips: Superior optical efficiency providing up to 160,000 Lux of daylight-quality illumination with 80,000+ hours lifespan.
- ✅ Specialized Multi-Mode Control:
- 🟢 One-Key Endo Mode: Soft ambient green/dim lighting optimized for endoscopic and laparoscopic procedures.
- ☀️ One-Key Sunlight Mode: True natural solar spectrum illumination for high-precision micro-surgery.
- 💡 Full Lux Mode: Maximum intensity output for deep cavity and complex surgical procedures.
- ✅ Ultrathin Aerodynamic Body (≤10cm): Slimline enclosed design produces minimal turbulence under laminar flow ceiling systems.
- ✅ Adjustable Color Temperature (4800K – 6500K): Multi-level color adjustment with CRI ≥96% and RA ≥97% for precise anatomical fidelity.
- ✅ Deep Cavity Penetration (≥1200 mm): Consistent light depth ensures high visibility in deep operative fields.
- ✅ Minimal Heat Dissipation: Temperature rise at surgeon’s head is ≤ 1°C and ≤ 2°C in the surgical field.
- ✅ Precision Spring-Balanced Suspension Arm: Rotates 360° smoothly with effortless positioning and zero drift.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | CLD SX-II 700 |
| Brand | Capasee |
| Lamp Head Diameter | 700 mm (Ultrathin ≤10cm profile) |
| LED Light Source | German Osram LED Chips |
| Illuminance | 40,000 – 160,000 Lux |
| Color Temperature | 4800 – 6500 K (Adjustable) |
| Color Rendering Index (CRI) | ≥ 96% |
| Color Reduction Index (RA) | ≥ 97% |
| Spot Diameter | 150 – 350 mm |
| Depth of Irradiation | ≥ 1,200 mm |
| Surgical Modes | One-Key Endo Mode, Sunlight Mode, Full Lux Mode |
| Brightness Adjustment | 1 – 100 Digital Step Dimming |
| Temperature Rise | Head: ≤ 1°C | Operation Field: ≤ 2°C |
| LED Lifespan | ≥ 80,000 Hours |
| Power Supply | 220V ± 22V, 50Hz ± 1Hz |
