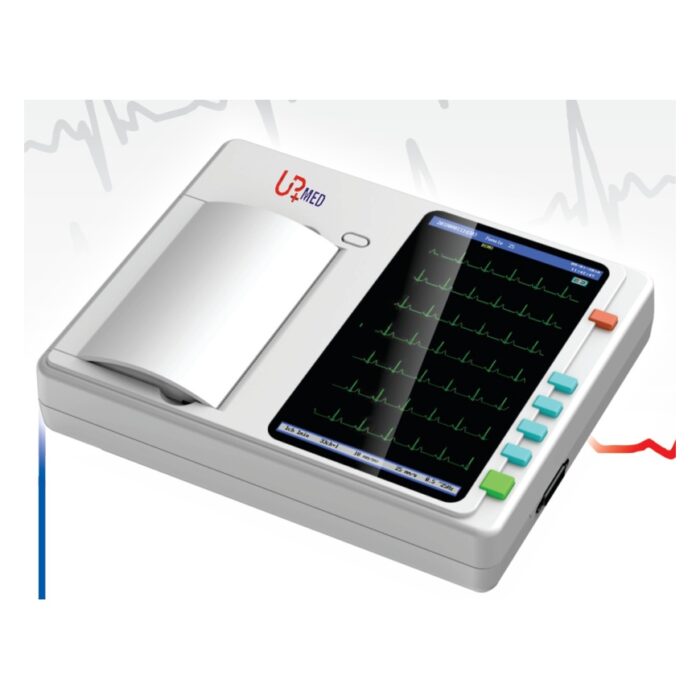

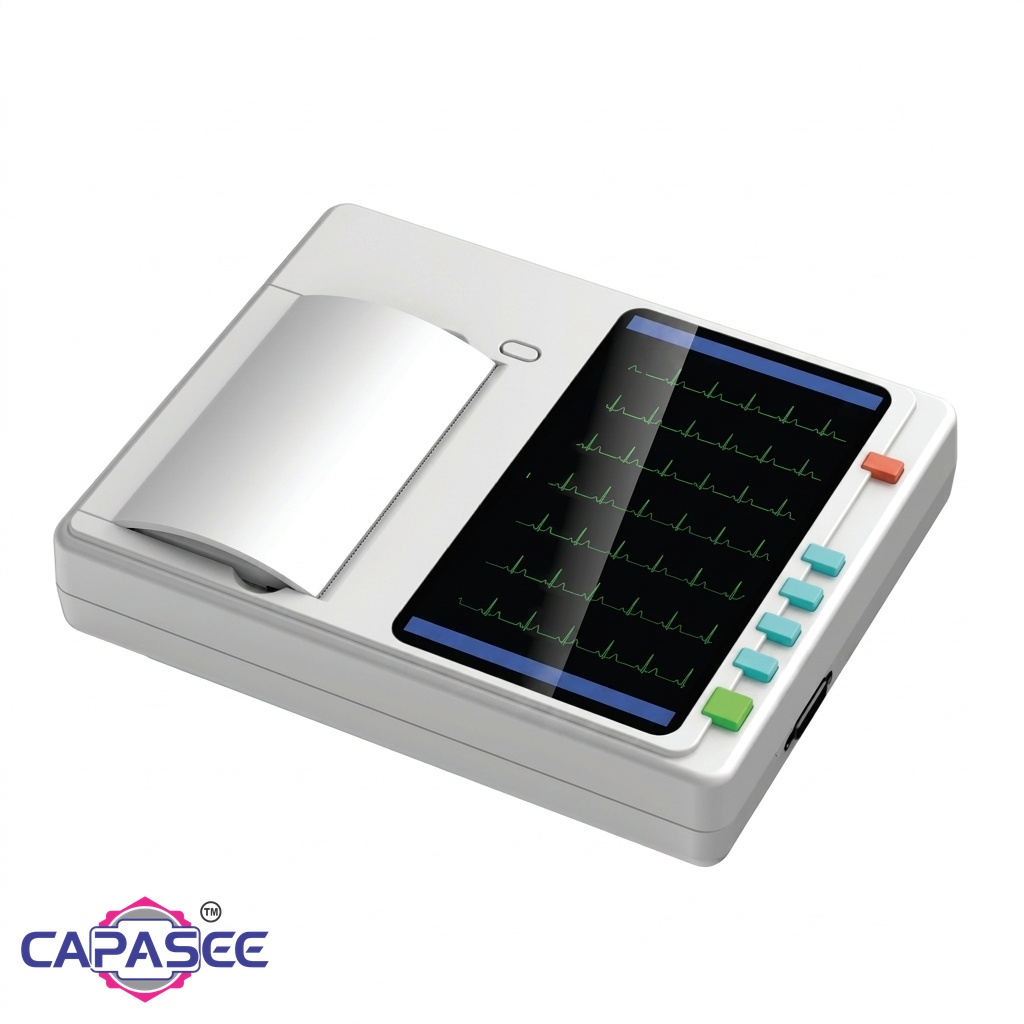

Capasee TEC350 3-Channel Digital Touch Screen ECG Machine
The Capasee TEC350 is a modern, portable 3-channel digital electrocardiograph featuring a responsive 7-inch high-resolution color touchscreen. Equipped with an advanced clinical ECG algorithm, it provides simultaneous 12-lead acquisition, real-time waveform display, and automatic diagnostic parameter analysis for hospitals, diagnostic centers, and clinics.
Key Features
- ✅ 7-Inch Color Touchscreen: Crisp, intuitive graphical interface with high-resolution 12-lead waveform preview and patient data entry.
- ✅ 12-Lead Simultaneous Acquisition: High-precision digital filtering technology eliminates baseline drift, AC interference, and EMG noise.
- ✅ Automatic ECG Parameter Analysis: Automated calculation of HR, P-R interval, QRS duration, Q-T interval, P/QRS/T axes, and clinical diagnostic interpretation.
- ✅ Thermal Printing System: High-resolution thermal array printing with multiple print modes (Auto, Manual, Rhythm).
- ✅ Mass Data Storage: Supports USB flash drive and Micro SD card for mass storage, export, and PC data connectivity.
- ✅ Built-in Rechargeable Lithium Battery: Delivers over 3 hours of continuous operation or up to 200 ECG recordings on a single charge.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TEC350 |
| Brand | Capasee |
| Channels | 3-Channel Printing / 12-Lead Simultaneous Acquisition |
| Display | 7-Inch High-Resolution Color Touch Screen |
| Frequency Response | 0.05 Hz – 150 Hz (-3dB) |
| Input Dynamic Range | ±5 mVpp |
| Filters | AC Filter, EMG Filter, Baseline Drift Filter |
| Memory & Storage | Internal Flash Memory + USB / SD Card Support |
| Power Supply | AC 100-240V, 50/60Hz + Rechargeable Li-ion Battery |
