Autoclave Diagram
A autoclave diagram is essential to understand how equipment for sterilization operates. It outlines the various elements and their roles in the autoclave system including the safety valve, pressure chamber along with the steam generator. In the case of Capasee Electro Medical Engineering Autoclave models this diagram shows the process by which steam pressure is used to remove the contaminates from surgical instruments, sterilization of labware and even medical waste. The application of moist heat helps destroy microorganisms, and to create sterilization of equipment. The autoclave process is visually illustrated, highlighting key phases such as high pressure steam, vacuum as well as heat penetration.
Schematic Diagram of the Horizontal Autoclave
The diagrammatic representation for the vertical autoclave graphically illustrates how the model functions. It is comprised of key components such as the vacuum gauge, pressure gauge and steam generator, all of which are all in sync to provide efficient Steam sterilization at high pressure. This method of sterilization is particularly beneficial in hospitals with sterilizers where surgical instruments as well as biological waste treatment products require safe sterilization. Temperature control and holding time are regulated depending on the kind of item that is being sterilized. Furthermore the mechanism for releasing pressure as well as safety valves guarantee security, securing people from possible risks during the process of sterilization.
What is an Autoclave?
An autoclave is a machine that is used to sterilize by using high pressure steam. It is typically employed in hospitals and labs to eliminate harmful microorganisms, such as bacteria as well as viruses and fungi. The procedure involves humid heat sterilization that is effective in sterilizing surgical tools as well as laboratoryware sterilization equipment. Autoclave procedures ensure that sterilized equipment is safe for use.
The autoclave operates by creating steam that is saturated inside the pressure chamber. The steam is then applied in high pressure steam conditions to ensure the effective removal of bacteria and decontamination. The autoclave controls temperature and the time for holding to ensure the complete sterilization of the materials such as mediums for cultures and waste from medical facilities. A proper autoclave maintenance program is vital for ensuring safe and reliable operation.
Autoclave Parts/ Components
An autoclave diagram is comprised of many important components that function together to ensure that sterilization happens efficiently. The most important components are the safety valve, pressure chamber and the steam generator. These components aid in controlling the high pressure steam to ensure that sterilized equipment such as surgical instruments and sterilization of labware are treated safely. The autoclave cycle requires precise temperatures and pressures to ensure the proper humid heat needed for protein coagulation and microbial deactivation.
Pressure Chamber
Pressure chambers are among the most crucial components in an autoclave. It houses the components to be sterilized and holds the steam that is under pressure. The chamber is filled with steam that is saturated that reaches extreme temperatures and pressures, which ensures an effective sterilization. It’s designed to handle these conditions effectively and safely which makes it an essential part of the autoclave process.
Lid/ Door
The lid and door of an autoclave is sealed to ensure the conditions of the pressure chamber inside. This will ensure that the autoclave process runs smoothly. A solid seal is essential to avoid steam leaks and to ensure that the sterile preparation process is done correctly. If the door isn’t sealed correctly, it may result in contamination and diminish the efficiency of the moist heat sterilization process.
Pressure Gauge
Pressure gauges are an important element that is used to measure the internal pressure within the autoclave. It is used to monitor high pressure steam levels to ensure that the sterilization process is within the safe limits. This is essential to achieve the desired outcomes in sterilization of culture media and medical waste removal, while preventing excessive heating or underexposure to materials.
Pressure Releasing Unit/ Whistle
The pressure releasing unit, also known as a whistle assists in making sure that pressure is released safely when the autoclave cycle is over. It is vital to avoid any sudden build up of pressure, that could result in harm to the autoclave and the components within. This device helps to maintain an environment that is safe for operation and assures that all autoclavable components are properly cleaned.
Safety Valve
The safety valve makes sure that the autoclave is operating within the safe temperature and pressure limitations. If the pressure becomes excessively high the valve automatically opens to let off steam. This can prevent injuries and ensures the chamber for sterilization is not able to overheat and cause harm to people. The safety valve for the autoclave is an important feature for secure use of sterilization equipment in hospitals.
Steam Generator/ Electrical Heater
The generator for steam or the electric heater plays a role in creating the steam that is saturated in the autoclave. The steam is produced by high pressure steam conditions, which assists in the sterilization process that is moist and humid. The steam generator makes sure that the autoclave cycle is able to achieve the temperature that is desired that allows for the sterilization of surgical instruments, as well as other autoclavable items.
You May Also Read This Blog: Cbc Machine: Hematology Analyzers, How It Works, and Financing
Vacuum Generator
Vacuum generators are used in certain autoclave models, to eliminate air from the pressure chamber prior to steam enters the chamber. This ensures greater heating penetration as well as more effective sterilization. The vacuum cycle can help improve the process of decontamination by permitting saturated steam to penetrate every surface of sterilization labware or sterilization of culture media to ensure complete microbial elimination.
Wastewater Cooler
The cooler for wastewater is an additional crucial component in properly managing the wastewater generated in the autoclave diagram process. It cools the hot water prior to when it is properly disposed or recycled. This makes sure it is safe to sterilize the process so that it will not create any negative environmental damage. A proper cooling system is crucial to safeguarding against damage to the autoclave and for ensuring proper disposal of biohazardous waste.
Autoclave Principle/ Working
The autoclave diagram utilizes high pressure steam to sterilize the materials. It creates saturated steam in the pressure chamber. This assists in killing harmful microorganisms and also ensures that the environment is decontaminated. The steam is injected into things like surgical instruments and sterilization equipment for labware, making sure that they are safe and sterile to use. A moist heat sterilization process is the key in this procedure, which effectively kills viruses and bacteria through protein coagulation and microbial inhibition.
The autoclave process is vital to ensure an appropriate sterilization. The steam under pressure is introduced into the chamber and reaches the temperature required to allow the heat to penetrate. Following the sterilization process vacuum pumps eliminate excessive steam, ensuring that the materials like the media for culture or medical waste are sterilized properly. The safety valve lets off the excess pressure, ensuring an environment that is safe for sterilization.
Working Principle of Autoclave
The autoclave diagram operates by using steam at high pressure to sterilize material. In the pressure chamber steam under pressure is created through the generator of steam. This process of sterilization using moist heat eliminates microorganisms through the application of pressure and high temperature and ensuring the sterilization of instruments for surgery and laboratory sterilization products.
Principle and Working of Autoclave Capasee Electro Medical Engineering
To comprehend the workings of an autoclave, take a look at a video about the basic principles and the autoclave process of Capasee Electro Medical Engineering. This video offers an easy explanation in pictures of how heated steam, as well as the temperature of control function within the sterilization chamber, making sure that microbial activation is effective and preparation of sterile equipment.
Autoclave Sterilization Process
The autoclave sterilization process utilizes high pressure steam to sterilize medical waste, surgical instruments, as well as labware. The chamber of pressure is filled with steam saturated generated by the steam generator to eliminate microorganisms. This ensures that sterile equipment is free of harmful bacteria thanks to humid heat sterilization. The autoclave cycle has particular pressure and temperature settings to ensure that the equipment is properly decontaminated.
In the process of autoclave it goes through three phases conditioning phase, the exposure phase and the exhaust phase. In the condition phase, steam is introduced into the chamber. In the process of exposure, the material is exposed to steam at high pressure for the time required to hold. In the final phase, the exhaust lets off steam, ensuring that the autoclavable material is safe to sterilize and are ready to use.
Step 1. Conditioning Phase
In the phase of conditioning in the conditioning phase, steam under pressure will be introduced in the chamber for pressure of the autoclave diagram. The steam generator creates saturated steam, which starts to warm the material inside. This process makes sure that all the items including surgical instruments, labware sterilization tools, attain the proper temperature for efficient sterilization.
Step 2. Exposure Phase
In the phase of exposure the autoclave diagram cycle is continued in high pressure steam for a set period of duration. This process ensures that microorganisms have been completely eliminated by the process of moist heat that results in the coagulation of proteins as well as microbial inhibition. Medical waste and culture media can also be effectively sterilized.
Step 3. Exhaust Phase
The final stage is the exhaust phase which is where the vacuum pump and safety valve are used together to eliminate the excess air and steam. This sterilization chamber has been then depressurized in order to restore the materials to their normal pressure. This ensures that sterilized autoclavables are safe to use and do not have any remaining moisture.
Procedure for Running an Autoclave

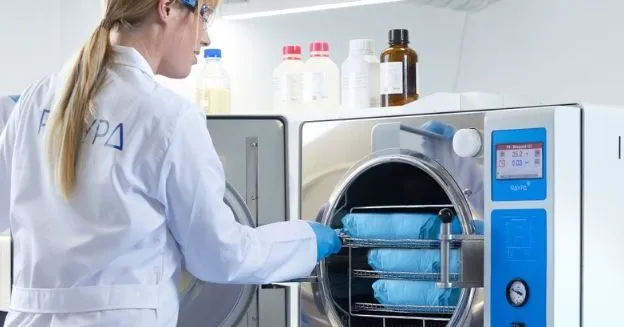

For proper operation of an autoclave diagram ensure that you follow the proper procedure for sterilization using an autoclave. Begin by placing the autoclavable material inside the chamber of pressure and making sure that there’s not any excess space to ensure heat to penetrate. Adjust your temperature as well as pressure in accordance with the kind of material to be sterilized, for example sterilization of surgical instruments or labware.
The autoclave process commences. Steam is introduced under pressure into the chamber of pressure to sterilize medical wastes and other materials that are contaminated. It is vital to hold time in order to ensure the inactivation of microbial growth. After the cycle has been completed make sure that the safety valve opens then the vacuum pump will complete this cycle of vacuum, making sure of an effective decontamination process and sterilization of equipment.
How to Use an Autoclave
To use an autoclave correctly Follow the detailed directions in the video of Capasee Electro Medical Engineering. This video clearly shows the process of autoclave diagram, describing every step of the sterilization process. This includes the use of the steam generator assuring proper pressure and temperature settings as well as knowing the autoclave process for efficient cleaning.
Best Practices for Autoclaving
While operating the autoclave make sure that the chamber that is used for pressure is filled with autoclavable material. The safety valve of the autoclave diagram should be checked in order to prevent any build up of pressure during the process of steam sterilization. It is essential to keep track of the holding time to ensure that the surgical instrument or wastes are completely cleaned to ensure that there is no microbial contamination. It is crucial to maintain the autoclave regularly to ensure that everything is working properly.
Types of Autoclave

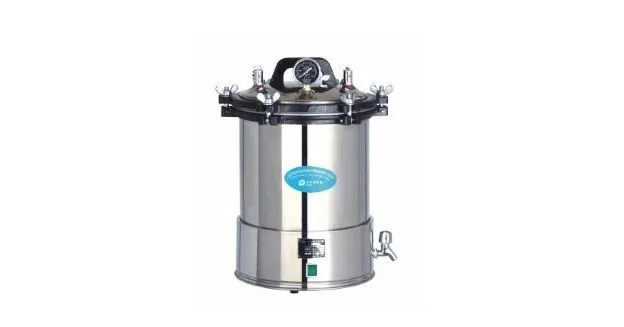

Pressure Cooker Type/ Laboratory Bench Autoclaves (N-type)
The pressure cooker type autoclave is a simple device that is widely utilized in laboratories for sterilization of moist heat. It operates by using saturated steam and high pressure steam to sterilize laboratory equipment or medical waste. It’s a cost effective solution for small scale sterilization that ensures effective microbial inhibition. The autoclave diagram process is simple with temperature control crucial to ensure effective removal of contamination.
Gravity Displacement Type Autoclave
An autoclave that is gravity displaced rely on gravity’s force to eliminate air from the chamber. Steam that is saturated enters the chamber and pushes to push out the air, making it possible to sterilize the material with thermal energy. This tpye of autoclave is perfect for materials that can be autoclaved and which are less prone for heat intolerance. It provides even steam disinfection and is frequently utilized in lab and medical situations.
Positive Pressure Displacement Type (B-type)
The autoclave diagram with positive pressure displacement (B-type) utilizes high pressure steam to expel air out of the chamber. This configuration allows for a greater thorough sterilization of objects such as surgical instruments or culture media. It’s efficient in sterilization and gives greater control over the time of holding. This is a great option for sterilizing biohazard waste and other materials that are sensitive.
Negative Pressure Displacement Type (S-type)
The negative displacement autoclave (S-type) is a device that creates an atmosphere of vacuum within the chamber. It provides a more efficient steam sterilization process by removing all air in the chamber. This kind of chamber is utilized to sterilize more delicate materials that require careless handling. It aids in ensuring a an adequate heat distribution and is often used in laboratories for sterilization. Vacuum cycles are an essential element for ensuring a complete sterilization.
Uses of Autoclave

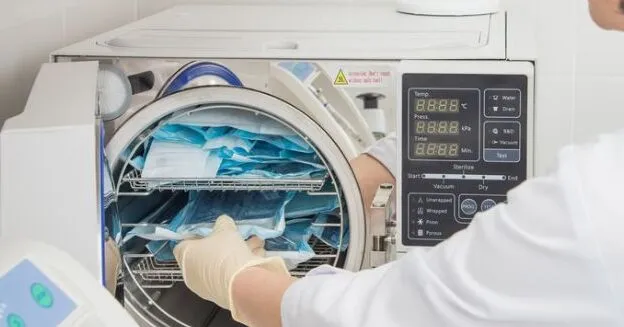

Autoclaves are extensively employed to sterilize in healthcare and medical situations. They are vital to clean medical instruments and culture mediums as well as medical waste. Steam sterilizers utilize high pressure steam to guarantee the elimination of microbial contamination and decontamination which is essential in the fight against infection and hospital sterilizer procedures.
In labs, autoclaves are employed to sterilize laboratory equipment and autoclavable substances. Autoclaves ensure proper humid heat sterilization of biological waste, sterilization of culture media as well as other delicate materials. The autoclave diagram process is designed to offer thermal sterilization to decontaminate equipment and ensure sterility throughout many lab procedures.
Medical Applications
In the medical sector, autoclave diagramare employed to sterilize instruments for surgery and culture media as well as medical waste. With the use of high pressure steam these machines make sure that harmful microorganisms are eliminated, thus preventing the spread of infection. Maintaining the autoclave is vital to ensure proper steam disinfection and cohesion, and to maintain sterile devices for sterilization of healthcare facilities.
Read More: Our Products
Laboratory and Industrial Applications
In labs, autoclave diagram are essential for sterilization of labware and the treatment of biological waste. Autoclaves use humid heat sterilization to make the sterile medium and to decontaminate the materials. Steam autoclaves provide sterilization as well as decontamination which makes them an indispensable instrument for controlling infections and the safe disposal of materials that have been contaminated in industrial and research settings.
Advantages and Disadvantages of an Autoclave
An autoclave diagram is a reliable sterilization and cleaning of medical instruments and labware by using high pressure steam. It’s time saving and economical in laboratories and hospitals, having a large capacity for sterilizing autoclavable items at the same time. Also, it ensures safety by using a pressure gauges and autoclave cycle control.
Disadvantages of Autoclave
Despite their benefits however, autoclaves are not without their limitations. The sensitivity to heat and moisture can cause damage to sensitive materials, and the improper use of autoclaves can result in harm to instruments. The risk of safety for operators is increased when safety measures in autoclaving are not observed. Furthermore, the combustion and corrosion of lubricants could result from the pressure and temperature settings utilized in sterilization.
Autoclave Safety Tips and Best Practices for Sterilization
Follow Manufacturer Instructions
The manufacturer’s specifications are essential for safe and efficient autoclave diagram operation. For Capasee Electro Medical Engineering instructions make sure that the temperatures and pressure levels are appropriately set for the various types of autoclaves. A proper handling technique helps to get the best sterilization results as well as the inactivation of microbials while maintaining the sterile equipment.
Regular Maintenance
Regular maintenance on the autoclave diagram will ensure that steam sterilizer functions effectively. Cleaning and checking the components such as the safety valve, steam generator and pressure chamber can prevent failures. This is necessary to avoid accumulation of pressure and ensure the decontamination in the autoclave cycle and also to extend the life of the machine.
Validation
Autoclave validation ensures it is safe to use the process for sterilization and follows the standards of the industry. Temperature and pressure settings have to be consistent to ensure successful sterilization of surgical instruments and sterilization of media for culture. Validating the autoclave diagram is essential to ensure the sterility of the instrument and guards against contamination, as well as ensuring the security in handling biohazardous waste as well as medical waste.
Precautions
In the event of using an autoclave it is vital to adhere to security precautions. Always make sure the autoclave diagram procedure is performed properly to avoid damage or injury. Pressure gauges and safety valves along with temperature controls systems must be inspected regularly to ensure that steam pressure is managed properly.
A second important factor is the regular maintenance for the autoclave. Cleaning the pressure chamber, and then inspect the vacuum pump for problems. Check that all autoclavable components are properly placed so that heat can be properly absorbed. Follow these guidelines for autoclaving to ensure effective sterilization and the decontamination of surgical instruments as well as sterilization of lab equipment.
FAQ’s
What is an autoclave with a diagram?
Autoclaves are chamber of pressure that is used to sterilize using steam that is high pressure. The diagram of the autoclave depicts its parts like the steam generator, pressure chamber and the safety valve.
What is the working principle of autoclave?
The autoclave utilizes the high pressure steam that kills microorganisms as well as sterilize the items by denaturing the proteins as well as breaking up cell structures.
What is the structure of the autoclave?
The autoclave structure is comprised of an air pressure chamber, a safety valve, steam generator and a control panel that is designed to control temperature, pressure, as well as sterilization cycles.
What is the autoclave used for?
An autoclave is a device used to sterilize medical equipment as well as laboratory equipment and biohazard wastes using high pressure steam to kill microorganisms.
Why autoclave at 121 C?
121 °C is the recommended temperature for autoclaving since it kills microorganisms through denaturing proteins. It also ensures sterilization within a time duration.
What is the principle of sterilization?
The principle of sterilization involves using high temperature steam, pressure, or chemicals to destroy all forms of microorganisms, ensuring sterile equipment for safe use.
Conclusion
The understanding of understanding the autoclave diagram is crucial for understanding the functions and components in an autoclave. It gives a clear understanding of the way high pressure steam is utilized for sterilization, making it a vital instrument in laboratory, medical and industrial environments. By examining the autoclave diagram, users can understand the working principle, safety mechanism and the process of sterilization. It doesn’t matter if it’s for lab equipment, surgical instruments or biohazardous waste, the autoclave will ensure effective decontamination and ensures sterility.
